Pannoramic Scan II Digital Scanner
Next Generation Scanning with the Pannoramic Scan II

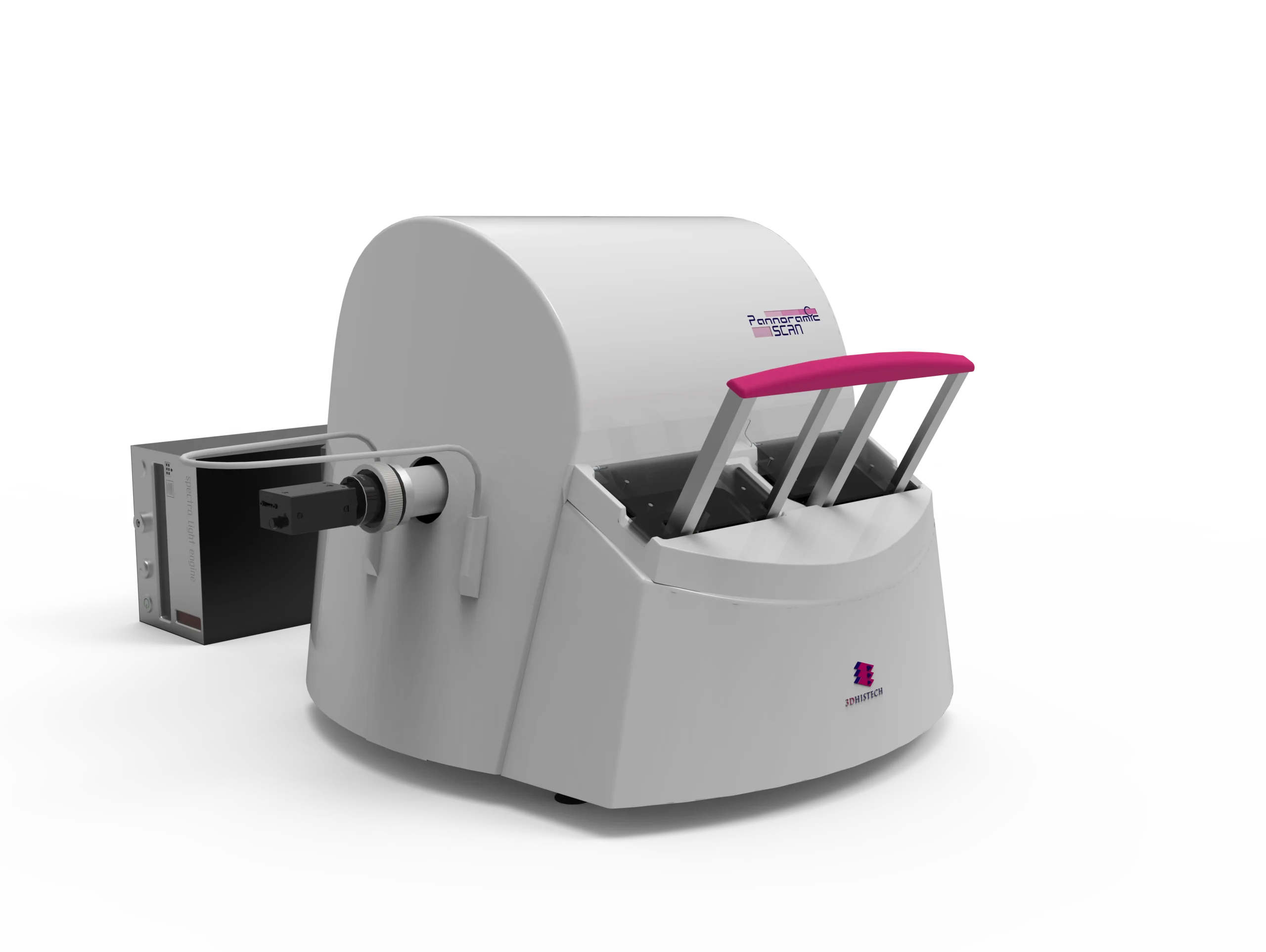

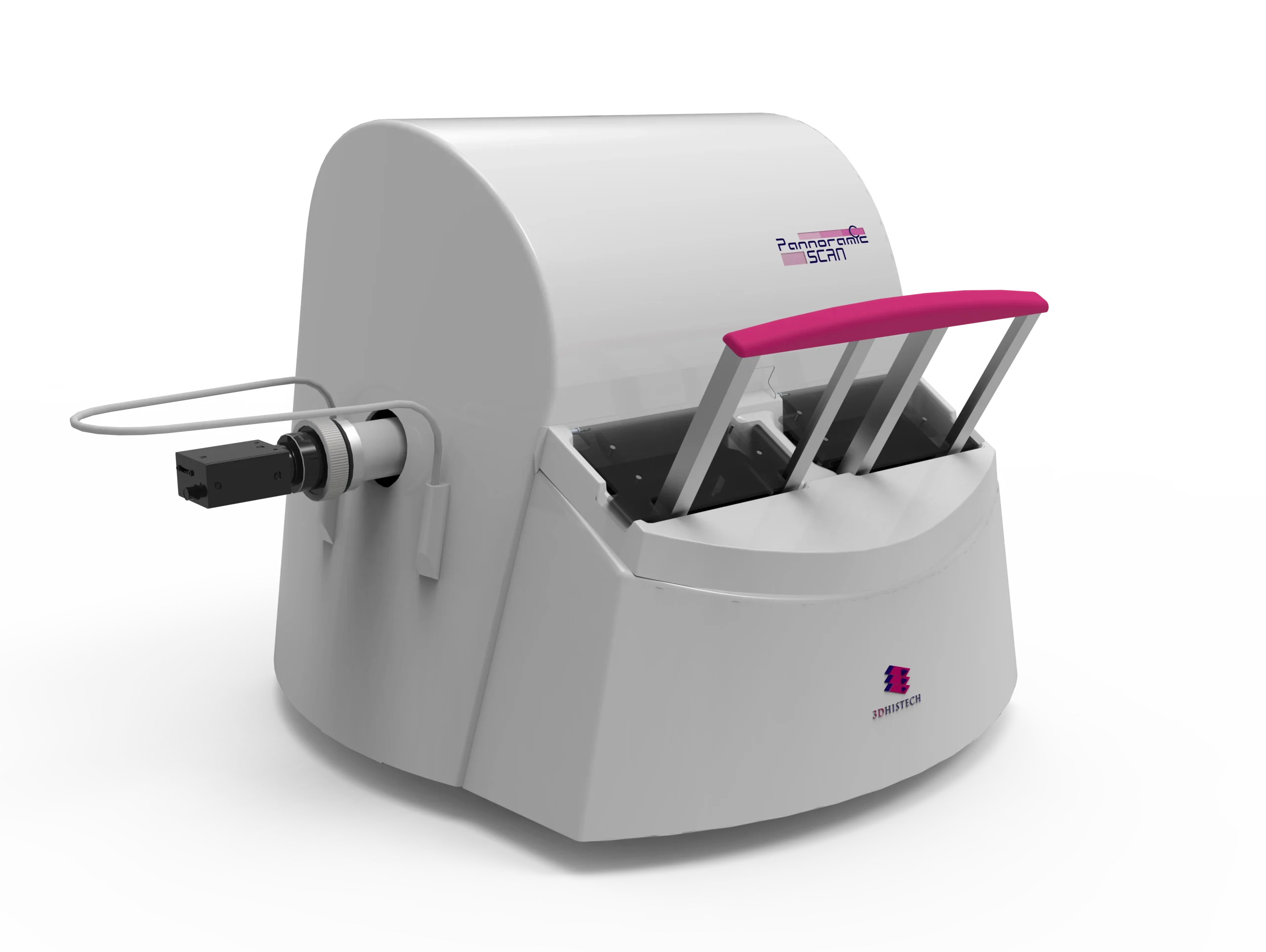

The Pannoramic SCAN II by 3DHISTECH is a state-of-the-art digital slide scanner designed to meet the needs of medium to large research laboratories. With a capacity to automatically digitize up to 150 slides in one run, it offers both brightfield and fluorescence scanning capabilities. This scanner stands out due to its exceptional image quality, achieved with high-quality objectives, allowing for up to 43x or 86x magnification and 0.087 µm/pixel resolution.
The Pannoramic SCAN II is equipped with advanced features such as continuous loading, a new slide sensor that skips empty slots, and a new monochrome PCO edge 4.2 bi camera that enhances fluorescence image quality, especially for immunohistochemistry applications. Its user-friendly design includes a customizable interface and versatile scanning profiles, making it highly adaptable to various research needs.
What distinguishes the Pannoramic SCAN II from other similar products is its combination of high capacity, superior image quality, and advanced fluorescence scanning capabilities, making it an invaluable tool for any research laboratory aiming for precision and efficiency.
Key Features:
Superior Image Quality
Equipped with high-quality objectives, the scanner offers up to 43x or 86x magnification and 0.087 µm/pixel resolution, delivering exceptional clarity and detail.
High-Capacity Scanning
Digitize up to 150 slides in one run, ensuring efficient and uninterrupted workflow for medium to large research laboratories.
Advanced Fluorescence Capabilities

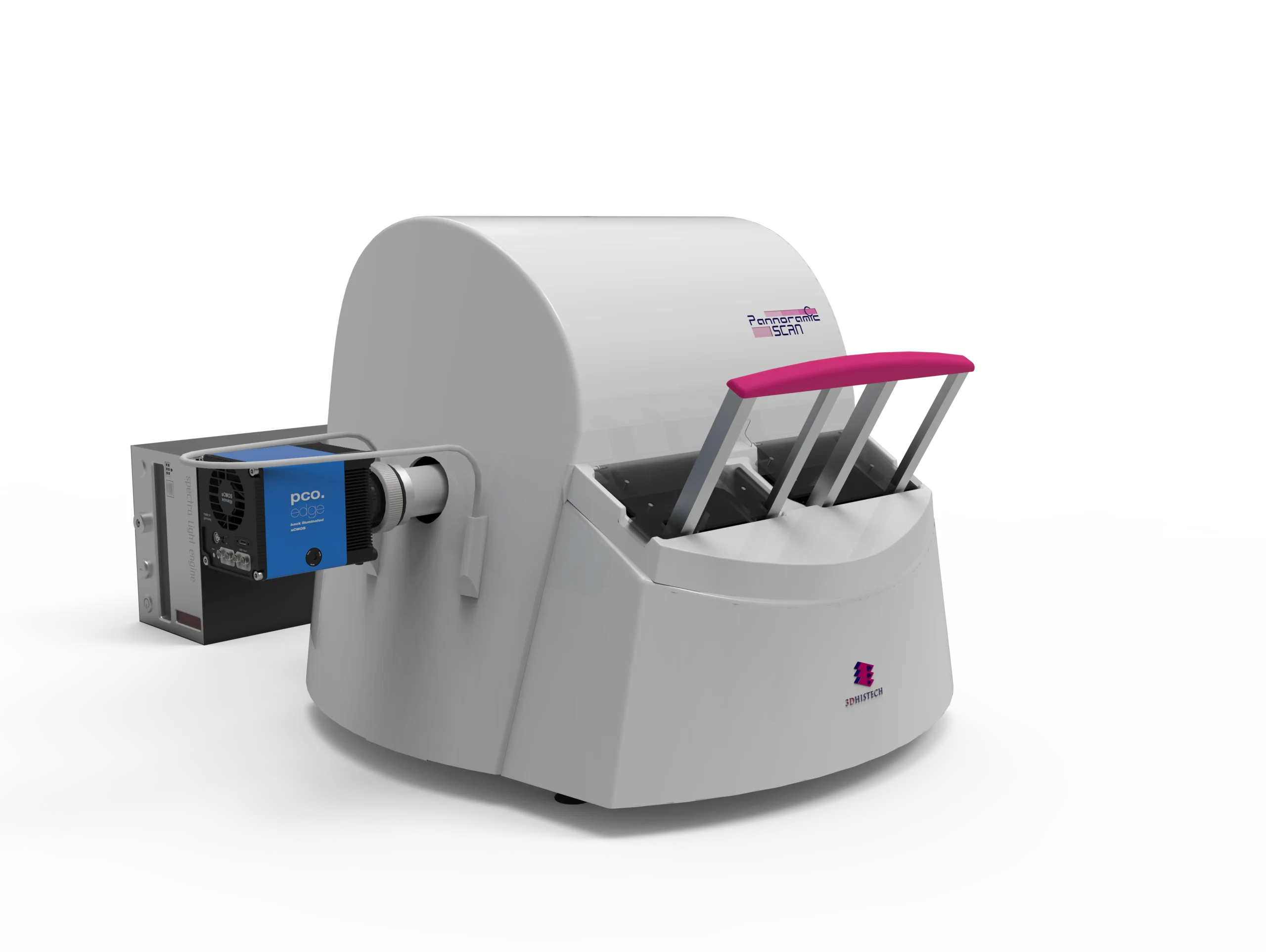

The new monochrome PCO edge 4.2 bi camera enhances fluorescence image quality, making it ideal for immunohistochemistry and other fluorescence applications.
Continuous Loading and Smart Slide Detection
Features continuous loading and a new slide sensor that skips empty slots, optimizing scanning time and efficiency.
User-Friendly Interface
Customizable interface and versatile scanning profiles allow for easy adaptation to various research needs, enhancing user experience and productivity.
Robust and Reliable Design
Built for durability and consistent performance, the Pannoramic SCAN II ensures reliable operation, making it a dependable tool for any research laboratory.
150 slides (6 magazines / 25 slides per magazine) or continuous loading
Brightfield and fluorescence whole-slide scanning
5 min 30 sec per slide (0.17 μm/pixel, 15 mm x 15 mm, 5MP high performance CMOS)
8 minutes 30 seconds per slide (15mm x 15mm, 0.33um/pixel, 3 fluorescent channels)
30 slides per hour for brightfield scanning at 0.17 μm/pixel resolution. For fluorescence scanning, the throughput is around 20 slides per hour at 0.33 μm/pixel resolution
Plan-Apochromat 20x/0.8 NA, Plan-Apochromat 40x/0.95 NA, Plan-Apochromat 0x/0.3 NA
Up to 2 (Dual) Optional fluorescence specific objectives available
Up to 115x
Up to 115x
MRXS, .JPG, .JPEGXR, .BMP, .PNG
Length: 75.0 to 76.2 mm, Width: 25.0 to 26.0 mm, Thickness: 0.9 to 1.2 mm
0.09 μm/pixel
0.09 μm/pixel
Wideband Multichannel RGB LED light source
High-end fluorescent light source with Lumencor SOLA U-nIR or Spectra III light engine
Automated tissue detection and automated coverslip detection
Length: 75.0 to 76.2 mm, Width: 25.0 to 26.0 mm, Thickness: 0.9 to 1.2 mm
Multilayer (Z-stack) scanning (optional)
1D and 2D barcode reading
Base Unit: approx. 740 mm x 530 mm x 450 mm
Base Unit: approx. 26 kg; with fluorescent option: approx. 29 kg
Specifications
Customizable Configurations
Available Objectives:
- 20x/0.8 NA (default)
- 40x/0.95 NA
- 10x/0.3 Plan-Apochromat objective (optional for lower magnification needs, available for fluorescence only)
Additional Options:
- sCMOS Scientific Camera with Back Illumination: Enhances image quality, especially for fluorescence applications.
- Multilayer (Z-stack) Scanning: Allows for detailed 3D imaging by capturing multiple layers of the sample.
- Extended Focus Scanning: Provides the sharpest image for each field of view by combining multiple focus layers.
- Motorized Objective Changer (Included when two objectives are selected, as the standard configuration includes a single objective.)
